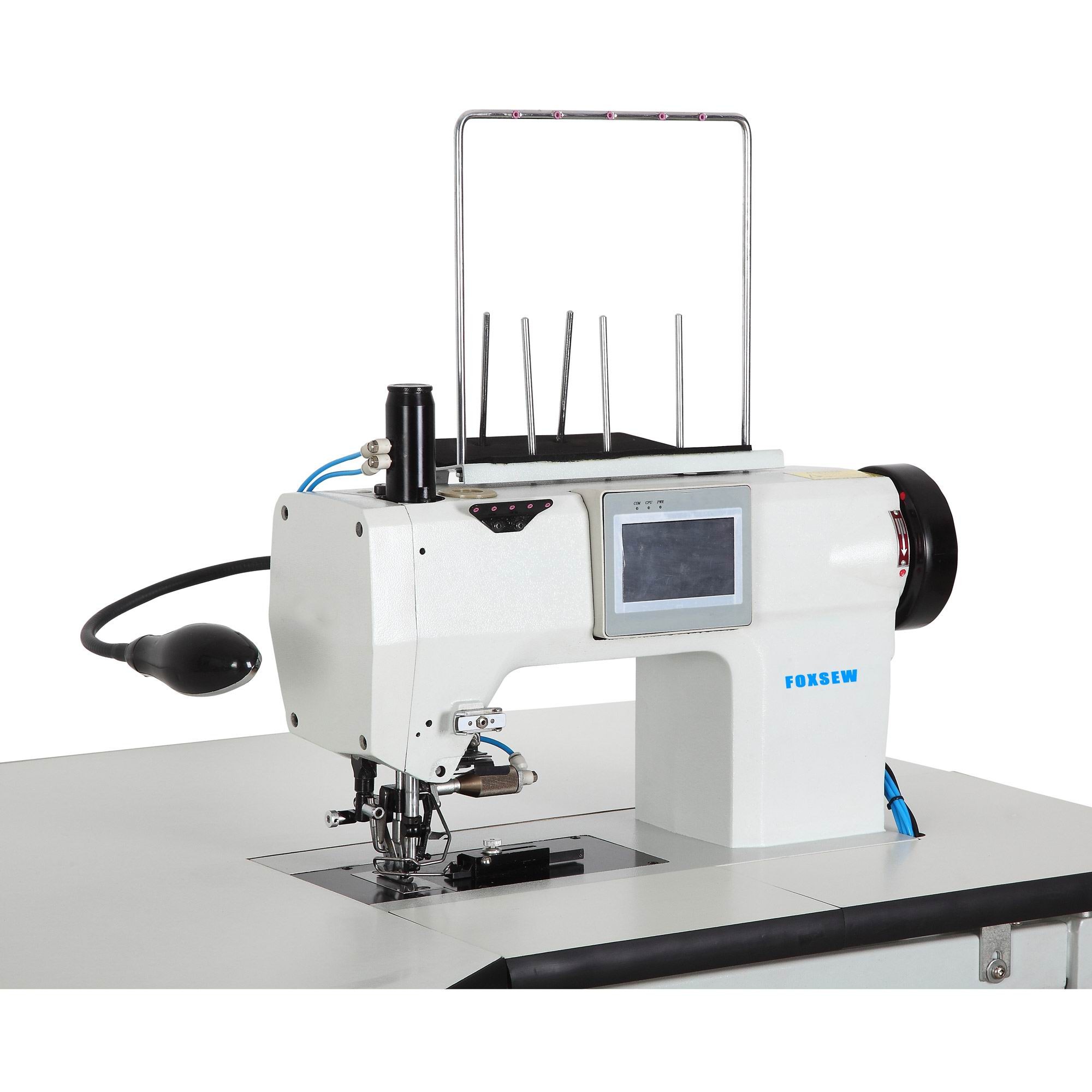

Features: The machine is equipped with 4.3 inch full-touch color screen and computerized digital operating system, which makes the machine more easy to handle and more beautiful
Controlled by coder and integrated with servo control system, the step motor not only makes mechanism and system to be more complementary, but it also makes the sewing performance more stable and contributes to more neat stitches and more accurate needle gauges. The machine has independently pneumatic lifter of presser foot and knee lifter of presser foot, auto-trimming function and manual-trimming function. It has half needle adjustment button, positive and negative pin-point shift button by foot, unique pattern-connecting function, bar tacking function, thread loosening function and many kinds of pattern sewing functions.
By producing spare parts made from titanium alloy, the machine becomes more durable, The sound is lighter and sewing performances are more stable.
Specifications:
|
Model |
FX-799 |
|
Sewing Speed |
420-500 stitches/min |
|
Stitch Length |
0.5-6mm |
|
Stitch Form |
1 stitch,1 thread, (real hand stitch) |
|
Thread Specification |
Common thread |
|
Thread Length |
90 cm |
|
Needle Type No. |
780C Size: 16# 18# 20# 23# |
|
Presser bar Lifting |
8mm Pneumatic Lifting |
|
Lubrication Oil |
Spindle Oil |
|
Appearance Size |
128x96x86 cm |
|
Weight |
170 Kgs |
|
Power |
220V 50HZ/380V |
|
Motor Power |
0.55 KW |
|
Air Pressure |
0.6Mpa |
