High Speed Flatbed Interlock Sewing Machine FX500-01CB
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Industrial Sewing Machine | Stitch Formation | Interlock |
---|---|---|---|
Mechanical Configuration | Flat-Bed |

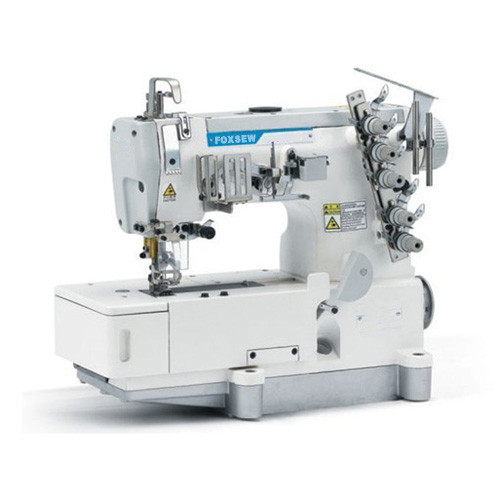

High Speed Flatbed Interlock Sewing Machine FX500-01CB
Applicable to knit wear, under wear T-shirt, for light and medium materials.
Characteristics:
1)This machine is used for seaming and enforcing two cloth such as under ware etc, suitable for light material.
2)The stitch number is #607, but actually it equip 5 needle, the first left needle is without any thread, which is used for loosen
the looper thread, avoid the shrinking of the materials.
3)Needle bar transmission structure, adopt all-sealed design, more safe and easier to keep clean.
4)Complete automatic supply system and oil-filter device, ensure the max sewing speed to be 6000r.p.m.
5)Some key parts are imported from Japan, which enhance he wear-resistance of the machine.
6)the extra wide stitch length of LS31016-01CBTD is hanged from 4.5mm into 5.0mm
remark: can be equipped with the direct drive equipment.
please equipped the rear puller, when sewing the blanket and super heavy materials.
maximum speed at 4500 R.P.M for the big gauge, maximum speed at 5000 R.P.M for the
heavy materials.
