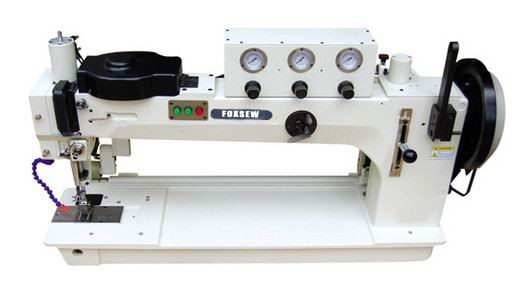

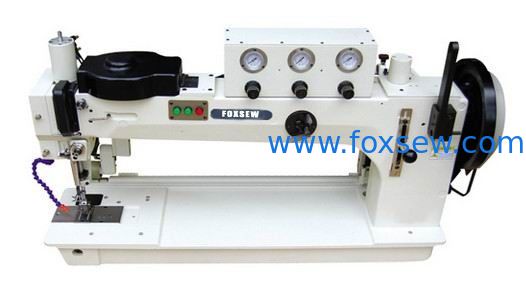

Features: Super large clearance room under the completed casting arm, not a cut and piece extended arm; Extra large shuttle hook and bobbin capacity offer high efficiency; Standard supplied with puller for strong and steady feeding; Easy to change cam for straight stitch, 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag; With pneumatic presser foot lift, Automatic back tacking and automatic thread tension release; with needle cooling system and hook cooler.
Used for: Boat Sails, parachutes, shade sails, tent and marquees, tarpaulins and industrial safety products.
Specifications:
|
Model No. |
FX-366-76 |
|
Max. Sewing Speed |
700 r.p.m |
|
Hook |
Large Shuttle Hook |
|
Max. stitch length |
10 mm |
|
Presser foot lift |
By hand: 8 mm, By Knee: 20 mm |
|
Needle bar stroke |
12 mm |
|
Needle System |
794#160-250 |
