Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX-158

Good quality Pattern Sewing Machine for sales
Good quality Pattern Sewing Machine for sales
I'm Online Chat Now

Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX-158

China Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX-158 supplier

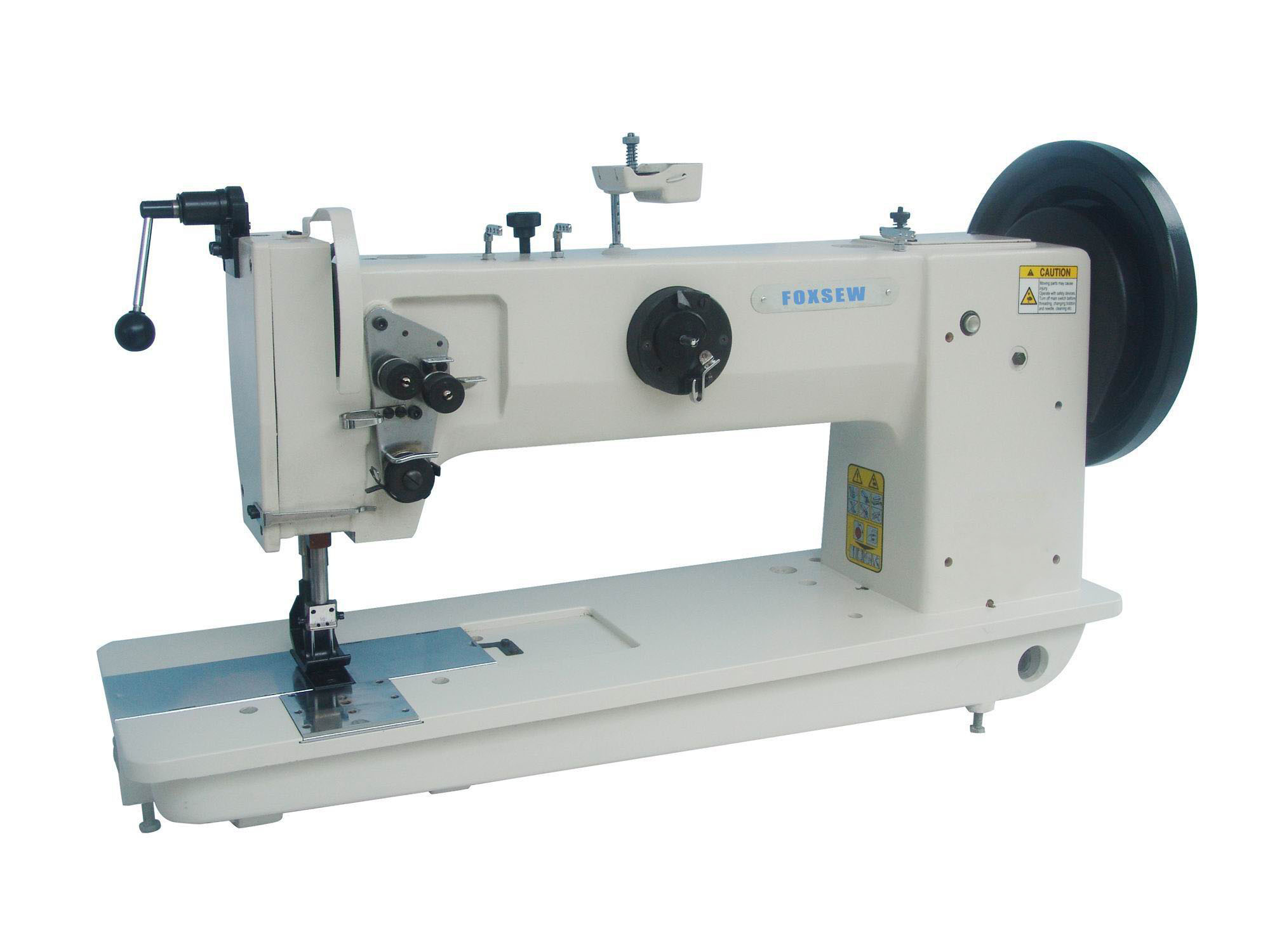

Large Image :  Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX-158

Product Details:

Place of Origin: Zhejiang,China
Brand Name: FOXSEW
Certification: CE
Model Number: FX-158

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Cartons
Delivery Time: 3-20days
Payment Terms: T/T,L/C
Supply Ability: 20000PCS/month
Contact Now
Detailed Product Description

Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX-158

Features:

This model is the king size of extra heavy materials compound feed lockstitch sewing machine of FOXSEW brand, it adopts vertical rotating hook, sliding lever thread take-up. We divide it into single-needle and double-needles. It adopts Synchronic feeding of needle bar and feed dog. The comprehensive performance of whole machine is so strong, especially includes these aspects: smooth drive train, low noise, large operation space, we also installed the clutch device to pretend the rotating hook from overloading, insure the safety of products and rotating hook. Convenient operation of pedal type reverse-feed, push-button type needling-distance regulating mechanism, adopts concealed bobbin winder, equipped with automatic lubrication rotary horizontal hook, it can reduce the frequency of changing the baseline when sewing thick seaming work piece. It is suitable for leather, artificial leather, Canvas, nylon chemical fibber, synthetic material, rubber and so on which is extra heavy materials, used for sewing sails and tents, cushion, sofa, beach umbrella, truck’s hook etc.

Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX-158



Model

FX-158

FX-158-2

Number of Needle

1

2

Max. Sewing Speed

1200 r.p.m

Stitch Length

0-10 mm

Needle Bar Stroke

46.8 mm

Presser Foot Lift

By hand: 12 mm By Knee: 21.5 mm

Needle type

DD*1 21#28#

Rotating Hook

Horizontal Fall Rotation Extra Large Rotary Hook

Presser Foot Alternation

6-19 mm

Lubrication

Manual Lubrication

Scale

Sliding Lever Type

Needle Gauge

Standard 9.5mm

Operating Needle

600*160 mm

Motor

550W Clutch Motor 1400 r.p.m
