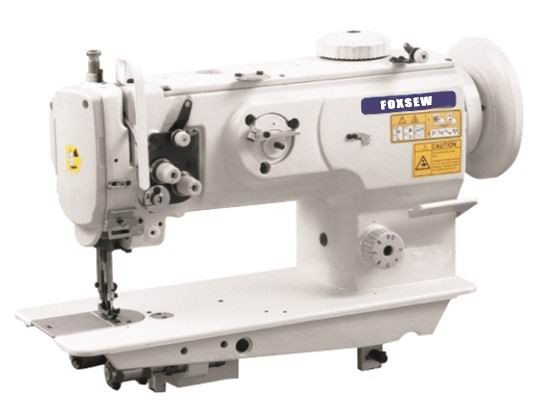

Heavy Duty Compound Feed Lockstitch (Thick Thread ) Sewing Machine

  • Heavy Duty Compound Feed Lockstitch (Thick Thread ) Sewing Machine
Place of Origin Zhejiang,China
Brand Name FOXSEW
Certification CE,,CCC
Model Number FX6400
Minimum Order Quantity 1PCS
Delivery Time 3-20DAYS
Payment Terms T/T ,L/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Heavy Duty Compound Feed Lockstitch (Thick Thread ) Sewing Machine series

FX-6400 (Single-needle)

FX-8400 (Double-needle)

FX-6400H (Single-needle)

FX-8400H (Double-needle)

Features: This series is the latest of FOXSEW brand heavy duty compound feed lockstitch sewing machines, which is designed with large vertical rotating hook for thread loop catching and sliding bars for thread up-taking, It has been sub-classed into single needle, double need, with thick thread special rotary hook. FX-6400H, FX-8400H is improved on the basis of FX-6400, increase the needle gage to 13mm. The application of needle bearings for arm shaft and hook shaft, cog belt driving, plunger pump lubrication and compound feed by needle bar, presser foot and feed dog provides this series with such splendid features as smooth running, quiet working, and a long service life. It is also equipped with a safety clutch to prevent the hooks from damage by over duty operation. So it is especially available in stitching car seat cushions, safety belts, safety air bags, tents, parachutes, etc.

Specifications:

Model

FX-6400

FX-8400

FX-6400H

FX-8400H

Max. Sewing Speed

1200 r.p.m

Stitch Length

0-9 mm

0-13 mm

Needle Bar Stroke

36 mm

38 mm

Thread Take-up lever stroke

74.5 mm

Presser foot lift

By Hand: 8mm  By Knee: 16 mm

Needle Size

DPX17 21#-26#

Rotating Hook

Automatic Lubricated Large Rotary Hook

Lubrication

Automatic Lubricated

Safety Clutch device

Yes

Needle Gauge

Standard: 6.4mm, 3.2, 4.8, 9.5, 12.7 mm is available.

Motor

400W 1400 r.p.m and 550W Servo Motor
