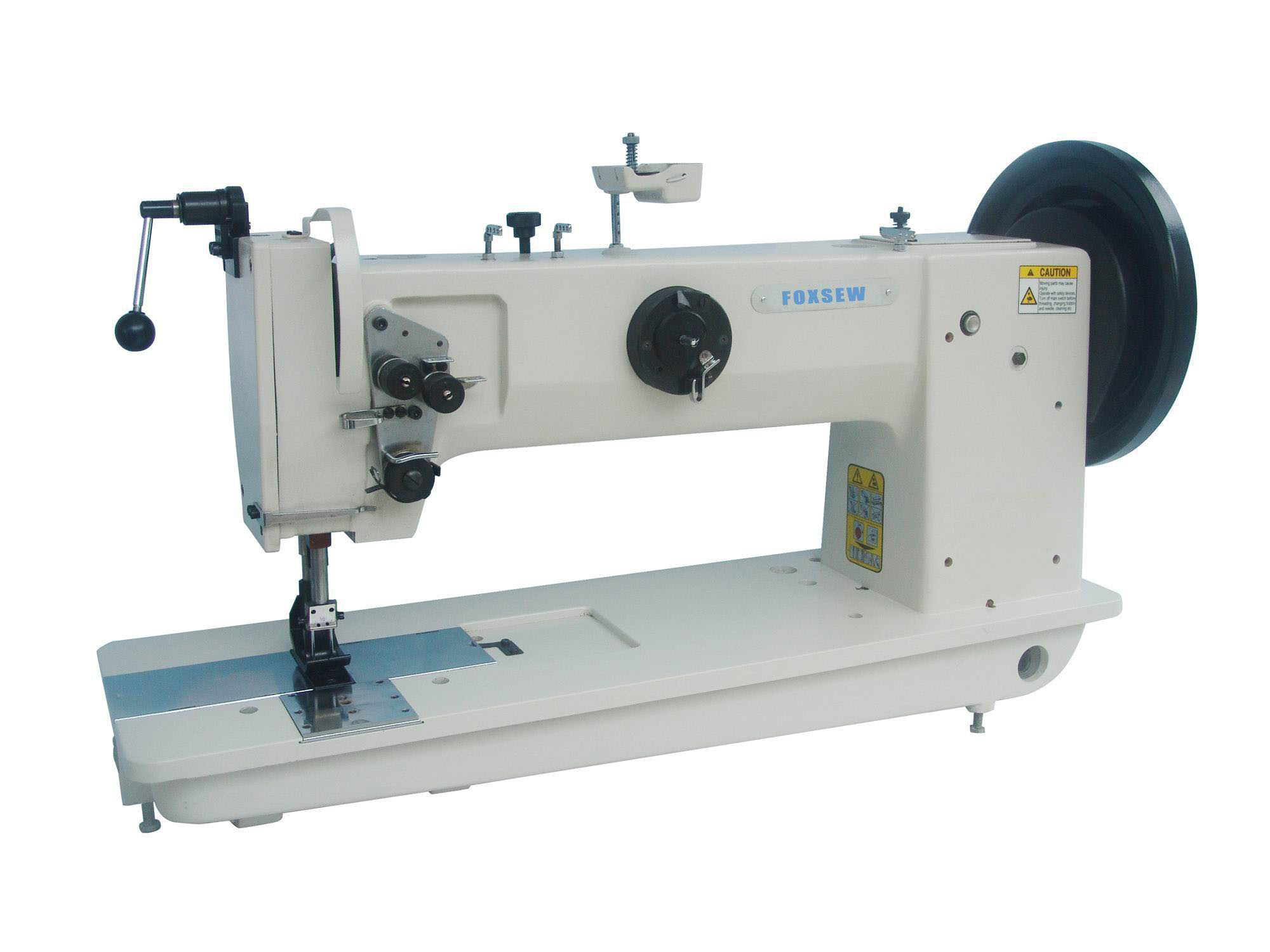

Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine

  • Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine
Place of Origin Zhejiang,China
Brand Name FOXSEW
Certification CE,,CCC
Model Number FX158
Minimum Order Quantity 1PCS
Delivery Time 3-20DAYS
Payment Terms T/T ,L/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Features:

This model is the king size of extra heavy materials compound feed lockstitch sewing machine of FOXSEW brand, it adopts vertical rotating hook, sliding lever thread take-up. We divide it into single-needle and double-needles. It adopts Synchronic feeding of needle bar and feed dog. The comprehensive performance of whole machine is so strong, especially includes these aspects: smooth drive train, low noise, large operation space, we also installed the clutch device to pretend the rotating hook from overloading, insure the safety of products and rotating hook. Convenient operation of pedal type reverse-feed, push-button type needling-distance regulating mechanism, adopts concealed bobbin winder, equipped with automatic lubrication rotary horizontal hook, it can reduce the frequency of changing the baseline when sewing thick seaming work piece. It is suitable for leather, artificial leather, Canvas, nylon chemical fibber, synthetic material, rubber and so on which is extra heavy materials, used for sewing sails and tents, cushion, sofa, beach umbrella, truck’s hook etc.

Specifications:



Model

FX-158

FX-158-2

Number of Needle

1

2

Max. Sewing Speed

1200 r.p.m

Stitch Length

0-10 mm

Needle Bar Stroke

46.8 mm

Presser Foot Lift

By hand: 12 mm By Knee: 21.5 mm

Needle type

DD*1 21#28#

Rotating Hook

Horizontal Fall Rotation Extra Large Rotary Hook

Presser Foot Alternation

6-19 mm

Lubrication

Manual Lubrication

Scale

Sliding Lever Type

Needle Gauge

Standard 9.5mm

Operating Needle

600*160 mm

Motor

550W Clutch Motor 1400 r.p.
