Integrated Sewing Unit for Programmed Sleeve Setting FX-81018GL

  • Integrated Sewing Unit for Programmed Sleeve Setting FX-81018GL
Place of Origin Zhejiang,China
Brand Name FOXSEW
Certification CE
Model Number FX-81018GL
Minimum Order Quantity 1pcs
Packaging Details Cartons
Delivery Time 3-20days
Payment Terms T/T,L/C
Supply Ability 20000PCS/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

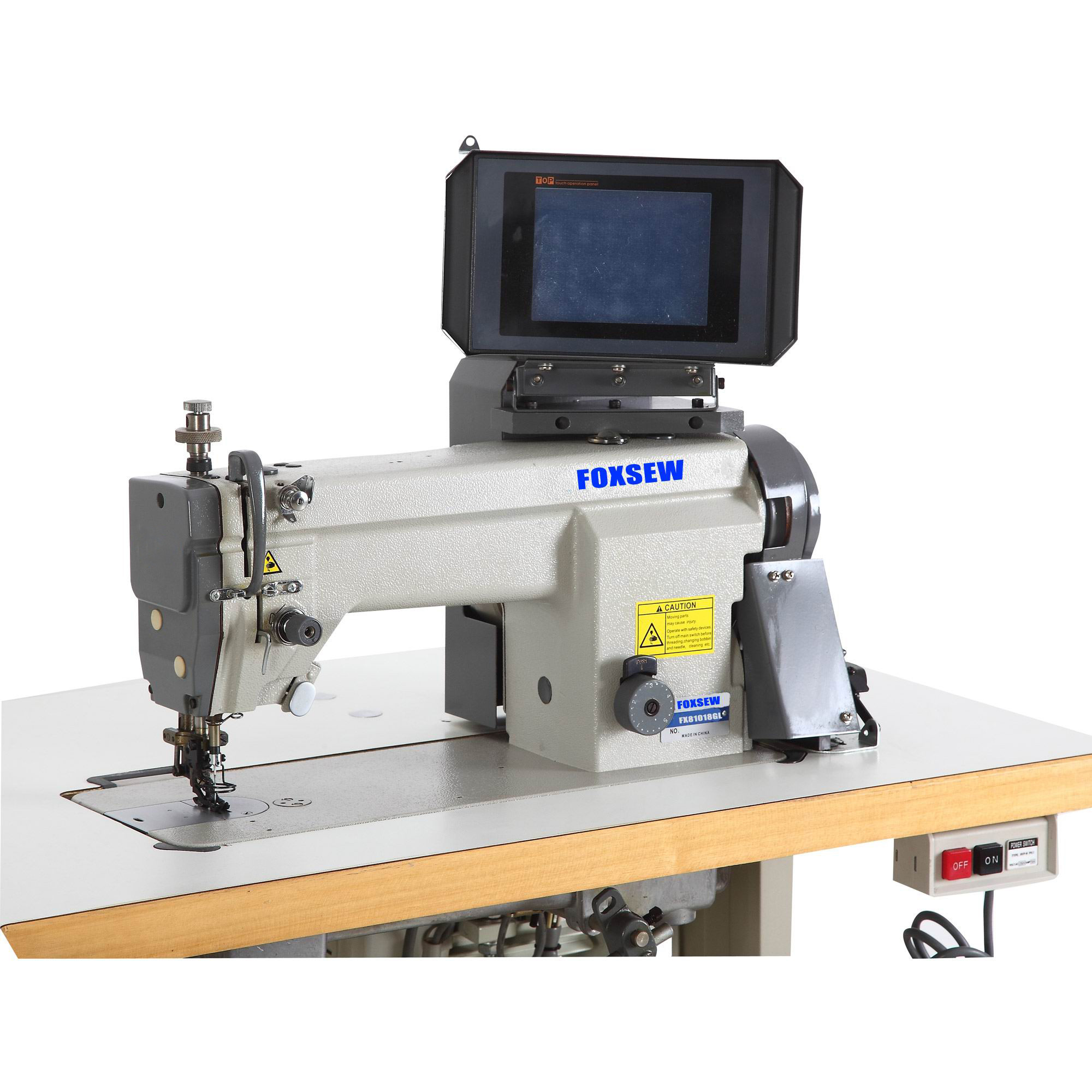

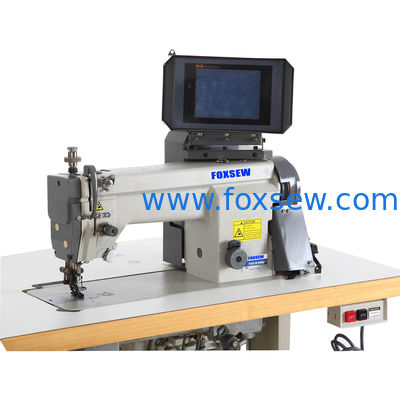

Integrated Sewing Unit for Programmed Sleeve Setting FX-81018GL

Features:
1. Up to 50 gathering styles to fulfill different fullness requirement for various sleeve style, size and material.
Fullness distribution total 100 style for right and left sleeve can be individually programmed and stored.
2. Each sleeve seam can be divided to 12 sections.
3. Stored programmers can be divided out easily simply by inputting the pertinent code number.
4. Extra fullness up to 10-20% can added as when required by the operator.
5. Perfect system due to automatic mirroring grading and repairing.
6. Easy and simple input system, by touch screen.
7. Automatic needle positioning, and thread trimmer.
8. Servo electronic motor.

Specifications:





Max Sewing Speed

2000 rpm

Stitch System

301

Max Stitch Length

4mm(bottom)/8mm(top)

Max Fullness Per Stitch

8mm

Max thickness of material

4mm

Needle System

134R

Power

Single Phase 220V/50-60HZ

Pneumatic

6kg/cm
