Ultrasonic Tape Cutting Machine (Multi Function)
- Product Name: Ultrasonic Tape Cutting Machine (Multi Function)
- Model NO.: FX-2200
- Origin: Zhejiang, China
- Brand Name: FOXSEW
Product Details: Ultrasonic Tape Cutting Machine (Multi Function)
Ultrasonic cutting, large touch screen, sharing platform. Varity shapes.
Special features:
Ultrasonic cutting: Blade is not black, ghost edge and feel comfortable. The powerful transducer cut faster.
Accurate: The accurate cut of labels by using optronics sensor.
Varity shapes: The special technique of sharing platform can carry variety shapes of knife molds and replace mold quickly.
Multi-angle: By use of multi-angle cut function of straight knife, can cut many shapes as parallelogram, rhombic, trapezoid, etc.
Computerised: Automatic work and stop, the special fault self-diagnosis. Display directly the problems. Clear fault zone.
Storage: Memory all cuttings for your convenience.
Applications:
Suitable for Woven Belts, Velcro, Shoelace, Zipper, Labels, And Kinds of Leather Belts. etc.
Specifications:
Model | FX-2200 |
Cutting Length | 25-99999 mm |
Cutting Speed | 120 p/min |
Max.Cutting Width | 100 mm |
Max.Cutting Angle | 35 mm |
Sound Frequency | 20K HZ |
Recommended Pressure | 0.4-0.7 Mpa |
Voltage | 110V/220V |
Power Rating | 1.5 KW |
Max. Power | 1.7 KW |
Weight | 155 KGS |
Packing Size | 700X610X1450 mm |

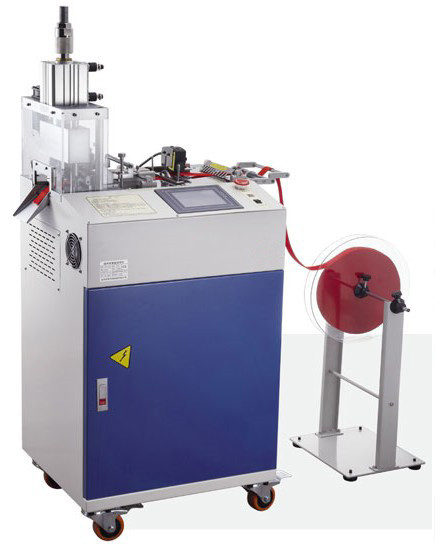

Product Images: Ultrasonic Tape Cutting Machine (Multi Function)
