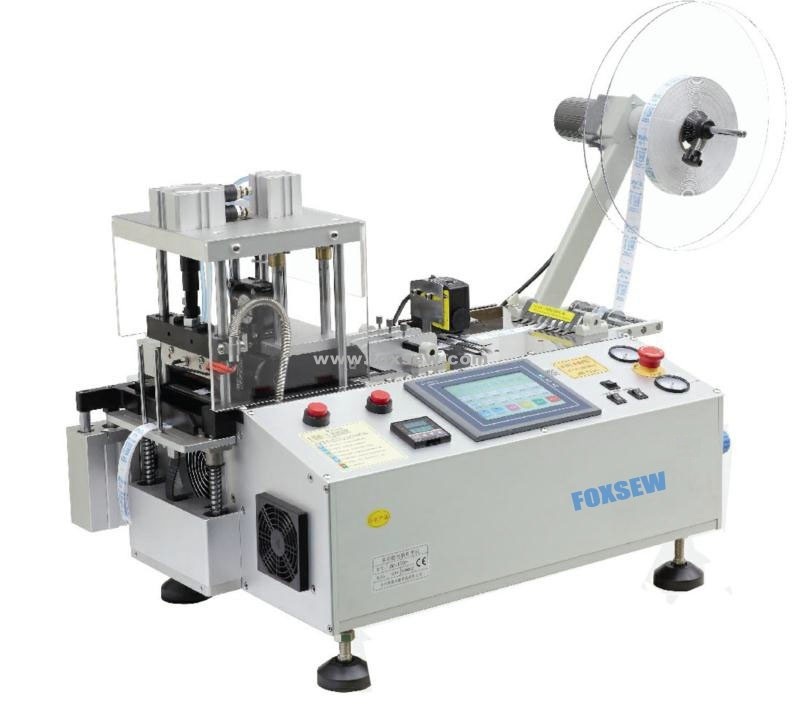

Automatic Label Cutting Machine with Collecting Device FX-150H

Place of Origin Zhejiang,China
Brand Name FOXSEW
Certification CE
Model Number FX-150H
Minimum Order Quantity 1pcs
Packaging Details wooden case
Delivery Time 3days
Payment Terms T/T,L/C
Supply Ability 1000PCS/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description
  • Product Details:  Automatic Hot Knife Tape Cutting Machine with Punching Hole and Collecting Device

FOXSEW Automatic Tape Cutting Machine Hot Knife Multi-function with Punching Hole and Collecting Device

Applications: All kinds of Woven Belt, Webbing, Ribbon Tapes, Zippers, Elastic Bands, VELCRO, Shoelace, Plastic Soft Tube, Computer Cable, Labels, etc...

Working Video 1: www.foxsew.com/company-video/automatic-elastic-tape-cutting-machine-with-collecting-device-474.html

Working Video 2: www.foxsew.com/company-video/automatic-elastic-bands-cutting-machine-with-collecting-device-472.html

Working Video 3: www.foxsew.com/company-video/automatic-elastic-cutting-machine-with-collecting-device-473.html


High Speed: It can cut 80-100 pcs per minute (e.p. 100mm long, with collecting device).
Accuracy: Cut-length is accurate owing to a stepping motor. A sensor makes cut-length accurate by automatic sensing at set-position.

Collecting Function: Setting the quantity, it will be collecting automatically, so that clients can be easily packed.
Punching Device: According to the needs of users, it can punching different size of the diameter of holes.
Cutting Type: The blade is made of high quality steel. Hot cutter can cutting ribbon, thin woven belt and the hot knife melts the end of the tape, cutting is sealed neatly smoothly without any fraying and burrs.
Automatic Operation: It works automatically only by setting length, quantity.
Computerized: Automatic work and stop, The special fault by self-diagnosis. Direct show the fault problem on the screen, it will easy for you to find clear way to repair.
Automatic Stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set quantity and set speed are not erased even if power off and on.

Cutting Samples:Automatic Label Cutting Machine with Collecting Device FX-150H 0



Specifications:

Model No.: FX-150H
Cutting Length (mm) 20-99999
Max.Cutting Width (mm) 100
Max.Blade Temp (°C) 450
Voltage 110/220V
Punching Hole Diameter 2-5 mm
Recommended Presser (Mpa) 20-50
Max.Collecting Height (mm) 40
Weight 78 Kgs
Packing Size 80x57x62cm
Power 0.65KW
100mm Cutting Speed (p/min) 100pcs
