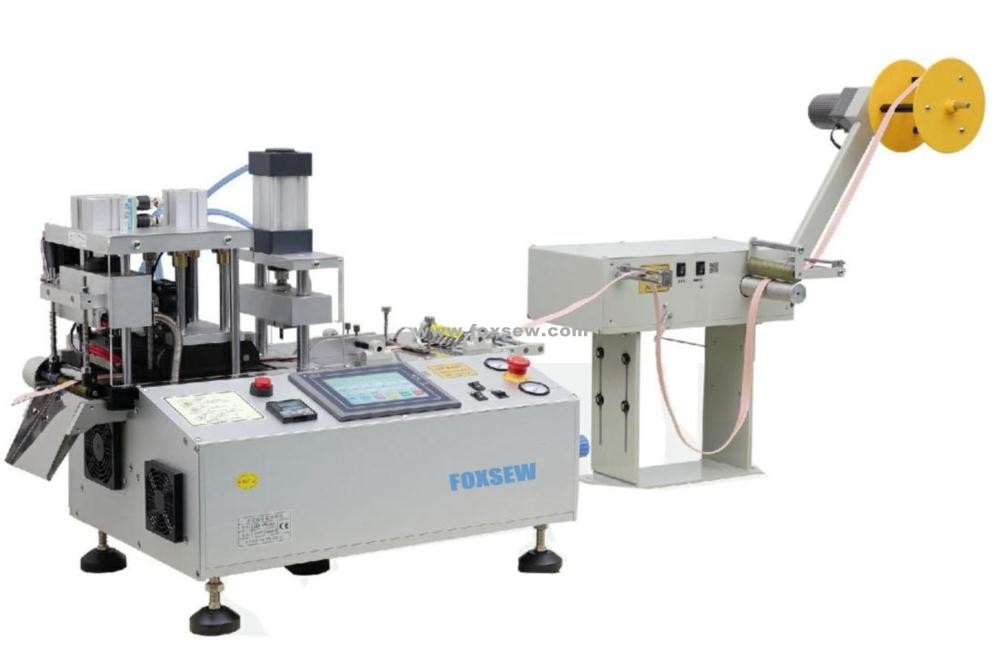

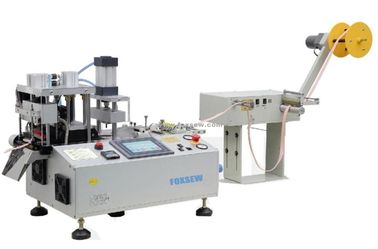

Automatic Webbing Cutting Machine with Hole Punch FX-150HX

  • Automatic Webbing Cutting Machine with Hole Punch FX-150HX
Place of Origin Zhejiang,China
Brand Name FOXSEW
Certification CE
Model Number FX-150HX
Minimum Order Quantity 1pcs
Packaging Details wooden case
Delivery Time 3days
Payment Terms T/T,L/C
Supply Ability 1000PCS/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

  • Product Details:  Multi Function Angle Tape Cutting Machine with Hole Punching

FOXSEW Automatic Angle Tape Cutting Machine Multi-function with Punching Hole

Applications: All kinds of Woven Belt, Webbing, Ribbon Tapes, Zippers, Leather Belts, Elastic Bands, Ropes, Slings, VELCRO, Shoelace, Plastic Soft Tube, Computer Cable, Labels, etc...

Working Video 1: www.foxsew.com/company-video/automatic-tape-angle-cutting-machine-with-hole-punching-413.html

Working Video 2: www.foxsew.com/company-video/automatic-angle-tape-cutter-with-punching-hole-518.html

Working Video 3: www.foxsew.com/company-video/automatic-rotating-knife-tape-cutting-machine-with-punching-hole-428.html

Working Video 4: www.foxsew.com/company-video/automatic-angle-ribbon-cutter-with-punching-hole-529.html

High Speed: It can cut 80-100 pcs per minute (e.p. 100mm long).
Accuracy: Cut-length is accurate owing to a stepping motor. A sensor makes cut-length accurate by automatic sensing at set-position.
Multi-Angle: By use of multi-angle cut function of straight knife, it can cut many different shapes and patterns, such as diamond, parallelogram, rhombic, square, pagoda shapes, etc... You can set up it by changing the length, quantity, angle, etc...
Punching Device: According to the needs of users, it can punching different size of the diameter of holes.
Cutting Type: The blade is made of high quality steel. Hot cutter can cutting ribbon, thin woven belt and the hot knife melts the end of the tape, cutting is sealed neatly smoothly without any fraying and burrs.
Automatic Operation: It works automatically only by setting length, quantity and angle.
Computerized: Automatic work and stop, The special fault by self-diagnosis. Direct show the fault problem on the screen, it will easy for you to find clear way to repair.
Automatic Stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set quantity and set speed are not erased even if power off and on.

Cutting Samples:

Automatic Webbing Cutting Machine with Hole Punch FX-150HX 0



Specifications:

Model No.: FX-150HX
Cutting Length (mm) 20-99999
Max.Cutting Width Straigh/Bevel (mm) 100/35
Max.Blade Temp (°C) 450
Voltage 110/220V
Punching Hole Diameter 2-5 mm
Recommended Presser (Mpa) 20-50
Weight 78 Kgs
Packing Size 80x57x62cm
Power 0.5KW
100mm Cutting Speed (p/min) 120pcs
