Energy-Saving Motor FX9 Series

Place of Origin Zhejiang,China
Brand Name FOXSEW
Certification CE
Model Number FX9 Series
Minimum Order Quantity 1pcs
Packaging Details Cartons
Delivery Time 3-20days
Payment Terms T/T,L/C
Supply Ability 20000PCS/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

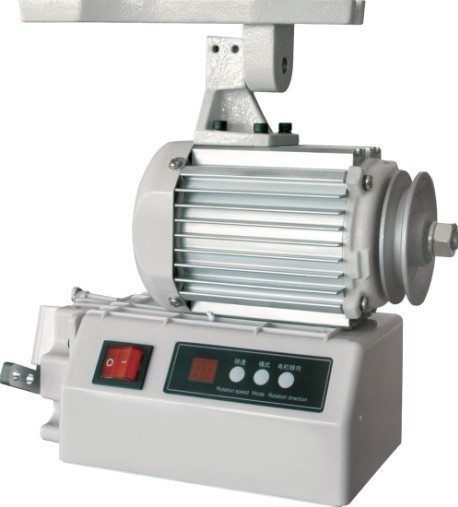

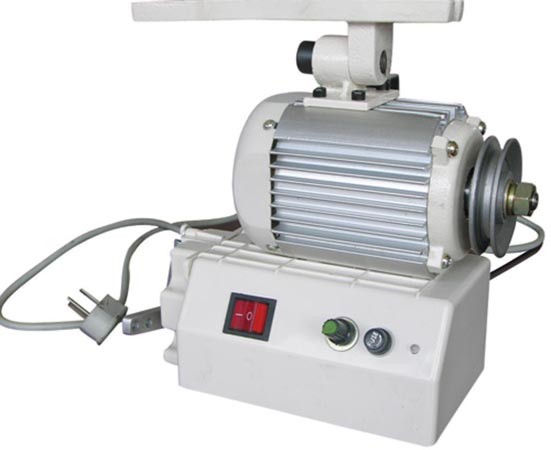

 Energy-Saving Motor FX9 Series

Function Characteristic:

(1). Compared with clutch motor, save 60%~75% energy;

(2). Stepless speed can be controlled by pedal, maximal speed is adjustable;

(3). Low noise, low vibration low temperature rise and high efficiency, system can run reposefully and safely;

(4). Hardware and software over current protection, hardware and software over-voltage/under-voltage protection to make the controller more reliable;

(5). Use brushless motor, not have to change any parts, longer life;

(6). Switch mode power supply, with wider voltage applicable range;

(7). Precise torque control, so that it can adapt to lockstitch, overlock, interlock, etc.

(8). Precise needle position: for both up and down, the system will locate it at the exact position.

FX9 Series Motors Specifications:

    Motor Type

       FX9140A

       FX9240A

     FX9140B

     FX9240B

 Energy saving

(Compare With
Clutch Motor)

       60%-75%

        60%-75%

      60%-75%

     60%-75%

Voltage Range

220V+ 20%, 50/60HZ

220V+ 20%, 50/60HZ

110V+ 10%, 50/60HZ

110V+ 10%, 50/60HZ

 Output Power

          400W

              400W

             400W

            400W

Max. Speed

      3800rpm

           3800rpm

           3600rpm

          3600rpm

Max. Torque

           2 Nm

             2 Nm

            2 Nm

            2 Nm

Speed Setting

                ★

                ★

                 ★

               ★

Error Report

                ★

                ★

                 ★

               ★

Direction Setting

                ★

                ★

                 ★

               ★

Overload Protection

                ★

                ★

                 ★

               ★

Needle Positioning

                ☆

                 ★

                 ☆

               ★

Pulley Size

           65mm

              65mm

              65mm

            65mm

Applicable Scope

Lockstitch, overlock,
interlock, etc

Lockstitch, overlock,
interlock, etc

Lockstitch, overlock,
interlock, etc

Lockstitch, overlock,
interlock, etc

Weight

                              Gross weight: 6.5 kg; Net weight: 5.6 kg

Dimension

                                                  320×305×195 mm
