Hot Air Seam Sealing Machine FX-V8

Place of Origin Zhejiang,China
Brand Name FOXSEW
Certification CE,,CCC
Model Number FX-V8
Minimum Order Quantity 1PCS
Delivery Time 3-20DAYS
Payment Terms T/T ,L/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Hot Air Seam Sealing Machine





Product Details:  Hot Air Seam Sealing Machine



  •

Features:
1.Controlled by programmable PLC with HMI Soft-touch display, process can be modified according to users’ requirements
2. Auto controllable temperature, highly stability, temperature vary between ± 1º C, the upper limit temperature with alarming device.
3. Synchronous moving with up and down pressing wheel chain.
4. To design controlling by feet at ease, suitable for long working according to physical Dynamics.
5. Be possible of working 24 hours continuously and produce highly efficiently.
6. Unique heated tube, unique wind machine supplying with wind, absolutely no water and oil.
7. Auto slightly fading function.
8. Different speed of upper and lower roller designed to ensure a better welding of elastic fabric as to avoid fabric ruffing
9. Setting for upper and lower roller can be adjusted according to different fabric, and different workmanship.
10. Large and strengthened zigzag-rule structure provides efficient and flexible working space.

Specifications:

Model

FX-V8

Power

110V/220V 50/60HZ

Rating Power

2800W

Heat Control

Room Temperature~700°C adjustable without bands

Speed

2-18m/min (adjustable without band)

Air Supply

0.03~0.2Mpa (adjustable without bands, displayed by a pressure meter)

Nozzle Width

Standard Flat Nozzle 24mm

Pressure of upper pinch roller

0-0.2Mpa adjustable without bands (pressure meter display)

Pinch roller Width

Mill finish standard 25mm, optional for others such as steel wheels, meshwork wheels and concave wheels

Packing Size

1350x730x1900 mm

Weight

170 kgs

Prevention Against Jumping over sewing work

There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping

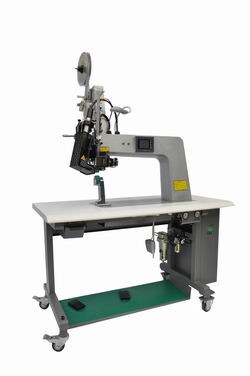

Product Images:  Hot Air Seam Sealing Machine



  •
Hot Air Seam Sealing Machine
