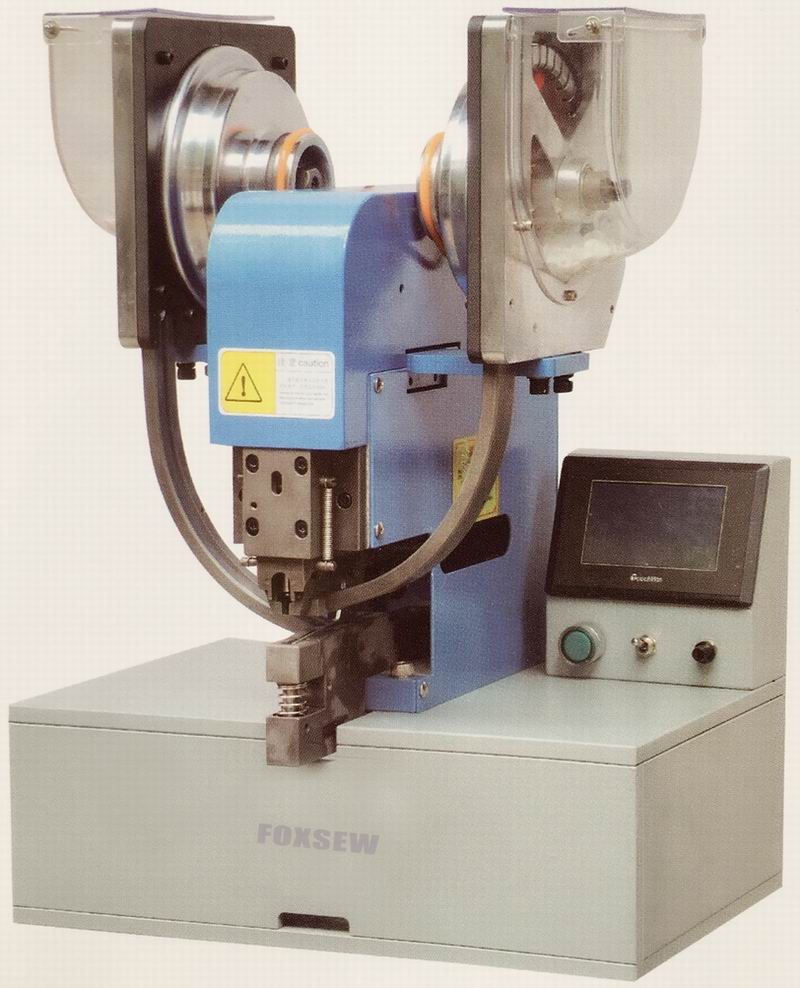

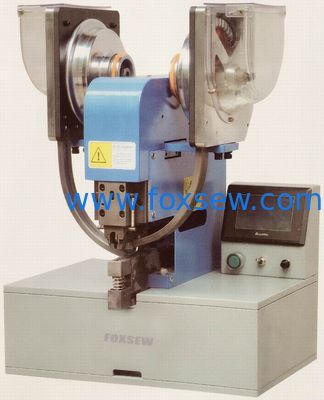

xFOXSEW Full Automatic Snap Pearl Attaching Machine
Applications: Children’s clothes, Jeans, Down Jackets, Casual Shirts, Leather Handbags, etc...
Mechanical Properties: By changing the mold parts can hold other buttons.
Mechanical Stroke: the stationary mold, pressing down on the mold.
Automatic feeding button to mold, manual button, safety does not hurt the hand.
Fast play button 4 to 6 times, every day can play button 15000-35000 pcs.
Have automatic buffer device, fabric thickness not die height adjustment.
Servo Performance: Install the advanced servo system, the stability of the play button performance, through the control system panel can be set singles and even the two patterns, in the play mode type can be set in every even number, you can set button degrees, is suitable for different workers play button demand.
Specifications:
Model NO. | FX-40S |
Drive Mode | Servo Motor Drive |
Power | 0.75 KW |
Voltage | 110V/220V |
Operating Height | 815 mm |
Working Pacing | 160 PC/Min |
Stamping Force | 30 mm |
Weight | 50 KGS |
Packing Size |
450x320x500 mm |
