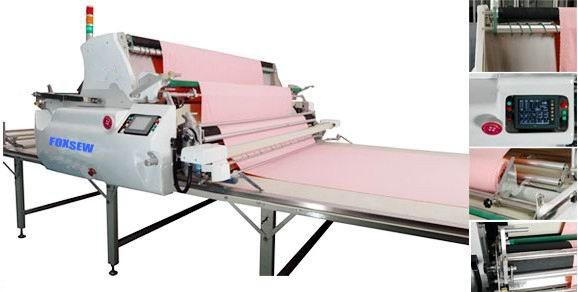

xAutomatic Spreading Machine for Knit and Woven FX-Y6
FX-Y6 series of Full automatic spreading machine, spread any kind of fabric for fashion apparel, furniture, car industry
and technical textiles. Available different devices to adapt machine to different kind of production, knit and woven fabric,
open and tubular, book folded or roll.
FOXSEW spreader, easy to learn, easy to operate, easy to maintain and reasonable quality and price. The spreading
specialist for fabric can rolls up to 100kg.
Equipped Devices:
Cradle with conveyor belt
The great peculiarity of FOXSEW cradle system consists in the roll being supported by one wide piece of conveyor belt
only, rather than many parallel narrow belts. This allows better quality result also with very light fabrics and even in case
of irregular side edges.
Equipped with Robotic Technology
Robotic technology: fitted as standard PLC (Mitsubishi), which allows making adjustment of many characters. Avoid the
little flexibility it has machines which work with ready made electronic charts and the impossibility to replace in local
places.
Touch screen
Touch screen: allows adjusting the programming to your concrete production. The screen is placed in a very comfortable
place where you can see all instructions while the spreading process. With single hand, you can give all instructions to
the machine, having the other hand free for checking fabric.
Encoder:
Machine drives by encoder: With under table chain allows programming any length of the marker and reaching perfect
ends, as well as spread in any place on the table.
Cutting Device
Adjustable in speed according to the material we have to work with.
Adjustable in cutting length, Able to cut paper under the marker.
Fitted with IFS (Impact free system) low acceleration on the cut beginning, and faster acceleration, avoid the wrinkles
while cutting process.
Security Rules
CEE, security rules, emergency stop if there is a supplier tension failure, if there is an engage of the cutting device.
Also machine goes with SAFETY SENSORS, to avoid any crush with a operator worker.
Technical Characteristics:
l Cradle with conveyor belt
l Easy loading and unloading rolls
l Automatic threading and rewinding fabric
l Ability to program all steps in a spread
l Adjustable edge side alignment by double sensor
l Machine drives by encoder
l Automatic high detector sensor
l Robotic technology
l Automatic start checks control when machine is switched on.
l Adjustable spread speed from 0 to 80 m/min.
l Programming feeding
l Digital touch screen
l Automatic cutting device
l Four-wheel drive (2×2)
l Device to spread fabrics roll in reverse way
l Self-adjusting brakes ramp according to speed of machine and programmed acceleration
l Security sensors emergency stop
Spreading any kind of fabric: Knitting fabric (open fabric, tubular, roll, book folded), and woven fabric.
l Any way of spreading: face up with clamps, face up without clamps, face down, zigzag, cutting zigzag
Characteristics & Power | |
Material Width | 1.6, 1.8, 2.0, 2.2, 2.5,3.0 m |
Roll weight(Maximum) | 100kg |
Roll diameter(Maximum) | 60cm |
Spreading height | 25cm |
Maximum speed per minute | 80m |
Operator side | Right(Normal)/Left |
Voltage | Single phase, 220V/50Hz |
Power supply | 1.7kw |
