Uses:
Quilt, coverlet, bedcover, sponge, leather and so on.
Details:
-

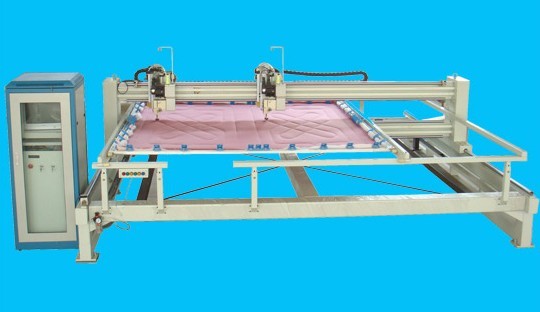

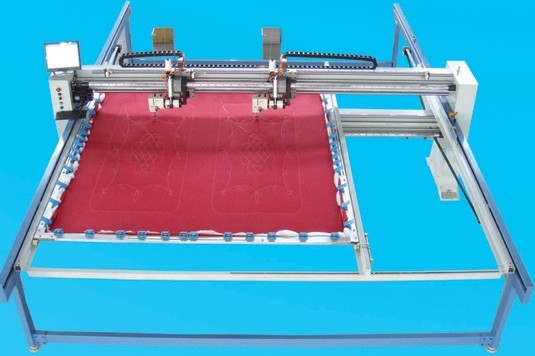

The head moves along X axis, and the frame moves along Y axis.
-
Work efficiency is double the single head quilting machine.
-
Each head can work independently.
-
Using special technology, the quilt can't be broken.
-
Using four servo motors.
-
Using good quality hardware and software, the right-angle, sharp-angle and circle can be well quilted.
-
15" color monitor, Chinese or English character, on which pattern, stitch distance, current stitch, rotation speed can be displayed.
-
Using industrial mainboard, Floppy disk and USB disk can be employed to input patterns.
-
Use the world’s most popular Tajima(dst) format pattern design files.
-
Upper thread breakage detection system: when the thread breaks, machine would stop.
-
Quilting pattern storage: about 200 patterns kept in the computer, also can be read from floppy.
-
Zoom the pattern by 1 cm step.
-
Retreat requiting.
-
Automotive backtack at every start and stop during the pattern cycle.
If shut off electricity, program would be kept in the computer.
-
Safety device: when an exception occurs, machine will stop automatically and the reason will be displayed on the screen.
