Product Details: Programmable Electronic Pattern Sewing Machine
The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label / badge attaching, shoe applications and many more special applications.
Characteristics:
Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;
Large rotating hook;
Liquid crystal touch operation pane;
Applying the same Mitsubishi controlling system;
Automatic thread trimmer;
Versatility of application.
Specification:
|
Model |
FX2010 |
|
Sewing Area |
200X100 mm |
|
Thread size |
polyester thread 0.3-1mm |
|
Rotating hook |
large rotating hook |
|
Thread trimmer |
Have |
|
Stitch length |
10mm |
|
Pattern storage |
below 691 |
|
Stepping foot lift |
max.18mm |
|
Max. stitches |
8,000/pattern |
|
Work holder height |
standard 25mm(max.30mm) |
|
Programmer |
build in pattern programmer |
|
Driving motor |
direct drive servo motor |
|
Needle |
DP17×25 |
-

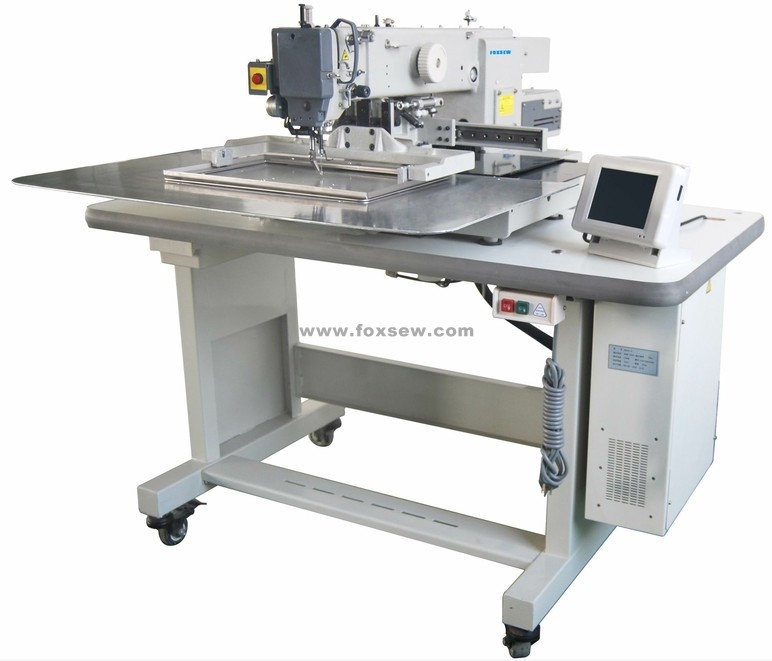

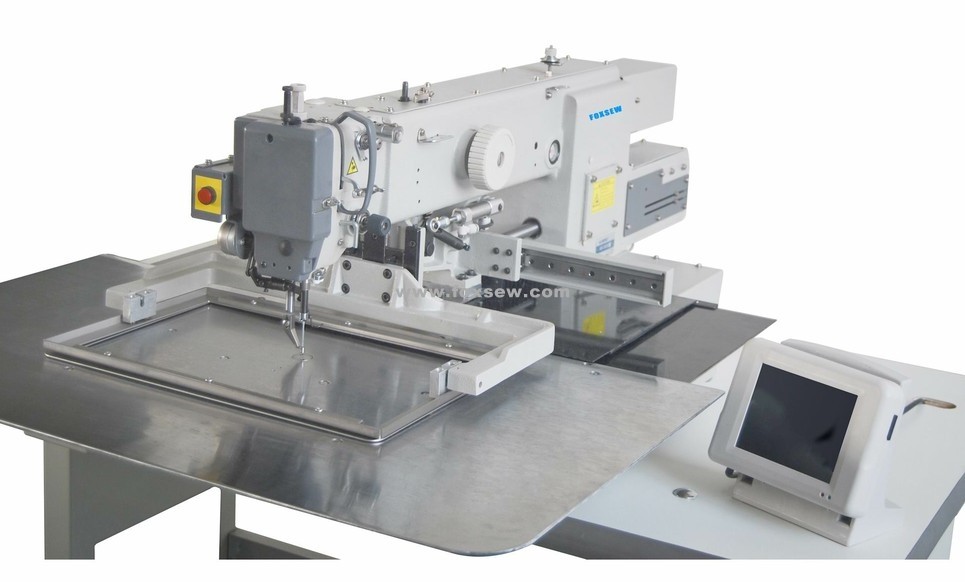

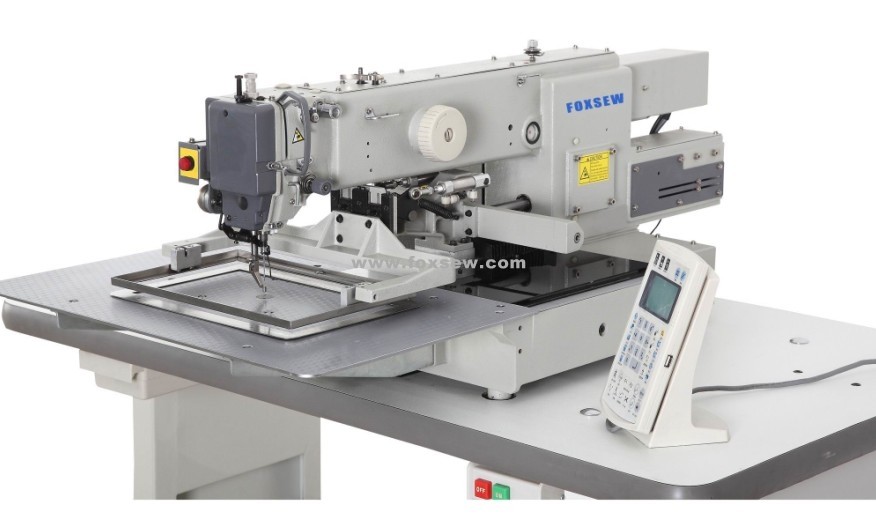

Product Images: Programmable Electronic Pattern Sewing Machine
