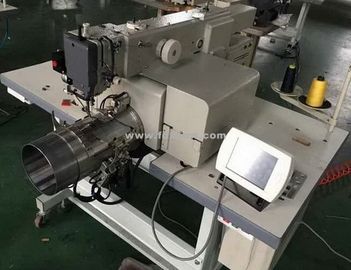

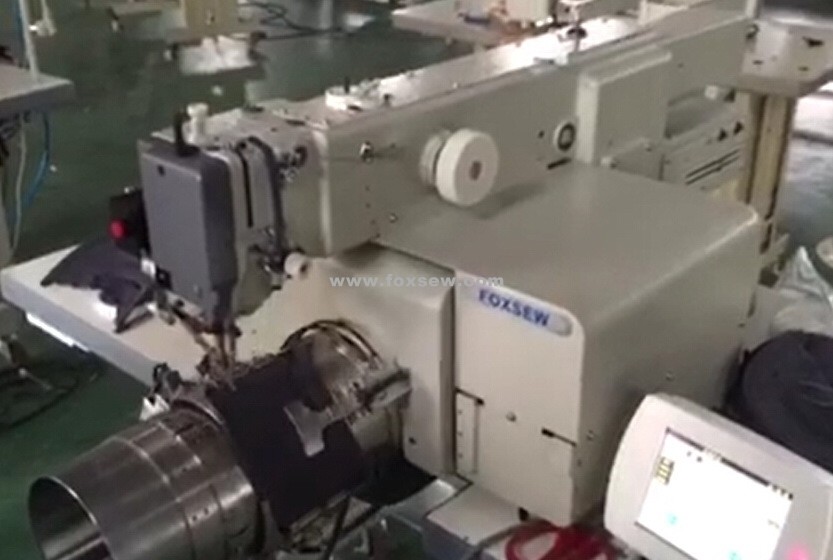

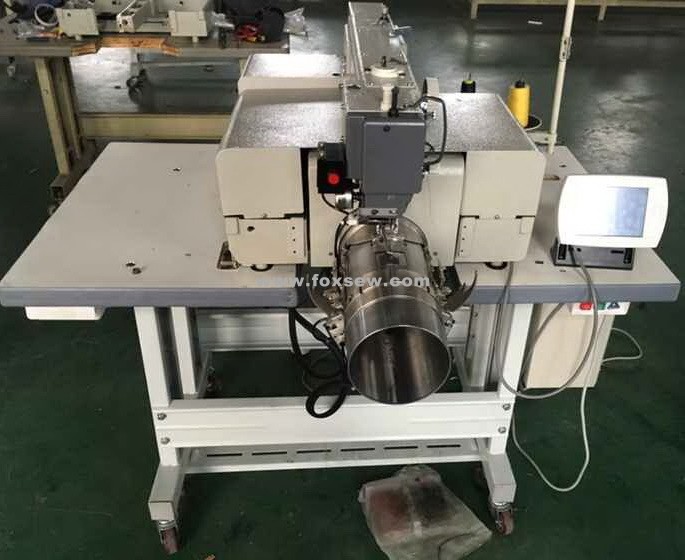

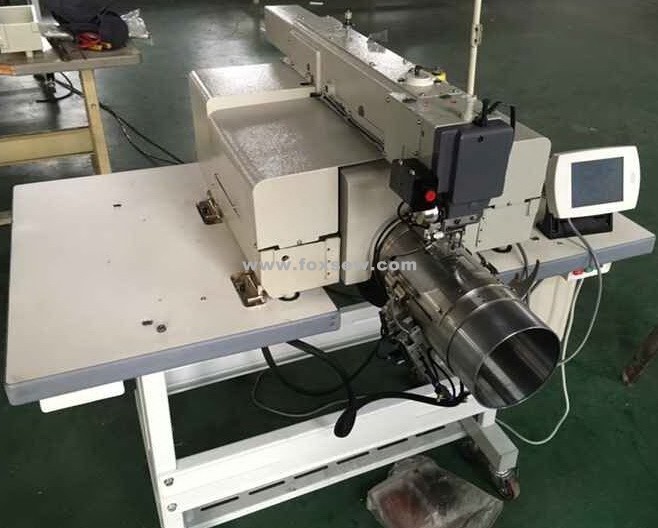

FOXSEW Automatic Curved Visor Pattern Sewing Machine for Baseball Caps Visors, Caps Visors, Visors.
Working Video 1: www.foxsew.com/company-video/automatic-curved-visor-pattern-sewing-machine-foxsew-557.html
Working Video 2: www.foxsew.com/company-video/automatic-caps-visor-pattern-sewing-machine-327.html
Working Video 3: www.foxsew.com/company-video/automatic-caps-visor-pattern-sewing-machine-521.html
This machine is special designed for customers requirements, it is used for sewing curve visors. FOXSEW invested a lot and spent enough energy to meet customers special requirements.
Characteristics:
Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;
Large rotating hook;
Liquid crystal touch operation pane;
Applying the same Mitsubishi controlling system;
Automatic thread trimmer;
Versatility of application.
Specification:
|
Model |
FX2516CV |
|
Sewing Area |
250 X 160 MM |
|
Thread Size |
Polyester Thread 0.3-1 mm |
|
Rotating Hook |
Large Rotating Hook |
|
Thread Trimmer |
Have |
|
Stitch Length |
100 mm |
|
Pattern Storage |
Below 691 |
|
Stepping Foot Lift |
Max.18mm |
|
Max. Stitches |
8000/Pattern |
|
Work Holder Height |
Standard 25mm (Max. 30mm) |
|
Programmer |
Build in Pattern Programmer |
|
Driving Motor |
Direct Drive Servo Motor |
|
Needle |
DP17X25 |
