Computerized Flat Knitting Machine FX2-52S

Place of Origin Zhejiang,China
Brand Name FOXSEW
Certification CE
Model Number FX2-52S
Minimum Order Quantity 1pcs
Packaging Details Cartons
Delivery Time 3-20days
Payment Terms T/T,L/C
Supply Ability 20000PCS/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

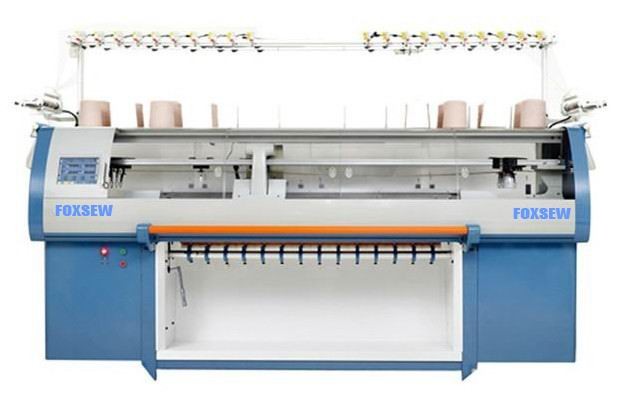

Computerized Flat Knitting Machine FX2-52S

Description:
FOXSEW Computerized Flat Knitting Machine is equipped with PICASSO programming system. It is the program designed
for pattern and auto withdrawal programs knitting machines. It Supports the Pattern and Program editing functions to further
reducing time and expenses in programming. Besides, the users could have a wide range or more complicate patterns
design options.
“Picasso” applies Windows operation software providing high working speed and efficient patterns editing. For instance,
we could edit various knitting patterns down load from digital camera; vision from scanner or from copy-right computer
graphics. With internet service today, it is convenient to transfer information from internet service provide by Window. Of all,
no matter where you are, once you are on-line, you could send or receive pattern files in just a blink, fast and cost saving.

Model

                               FX2-52S(Sinker type)(Japanese Avail operating system)

Segment bed

                                                 52"(132cm),Replaceable Segment

Knitting width

                                                             Maximum52"(132cm)

Needle
Gauge

                                                            5.6.7.8.10.12.14 per inch

Speed

Knitting speed varies according to gauge and knittingcondition.MAX.1.2m/sec..24speed selection
programmable command control.

Compact

Compound knitting cam system, each system can execute knit,
tuck and miss 3 technique at the same time.

Transfer

Compound knitting cam system.each system can transfer
from the front to rear, rear to front or both front and rear simultaneously
without direction restriction. Auto racking and auto receiving.

Stitch cam

Each stitch setting is controlled by a step motor .It has 24 stitches of
independent selections and each of them ranges from 00-180 steps
for knitting pattern.

Needle selection

Each system has 4 sets special solenoids. Double cam system equipped
totally 8 sets solenoids, which can be installed or removed simply from  the
carriage and maintained easily.

Yarn carriers

2*8 sets yarn carriers on 4 double side rails.switchable ib any area within
the knitting width. Also can be equipped with special design yarn carrier for
intarsia pattern(Option device).

Movable sinker

This system composed by two additional pieces of sinker needle bed. The
sinker presser degree adjustable the positions by knitting program command.(FX2-52S)

Racking AC

Servo motor control.the programmable racking positions within 2 inches.each also having 1/4.
1/2and 3/4 micro adjust able positions.

Main take down

24 levels changeable tensions, adjustable automatically on each level.

Sub take down

24 levels changeable tensions, adjustable automatically on each level. Automatic open and close.

Carriage drive

AC servo motor control.tooth shape driving belt.no oil needed.24 speed selection and freely
programmable.

Stop motion

Yarn breaking.knot.press off.needle break.over current.roll back.wrong racking.
inappropriate position of presser.excessive yarn.and reaching on production target offer
automatic stop.

Memory capacity

1024×4096 hung memory for the width and pattern length design.

Language

CRT indication English and Chinese are standard version. Supplement with other
 languages(Option software)

Power

AC3 phase 220v.electricity consumption 2.4KVA.
